- Garden cube frame from spruce;
- Wooden floor;

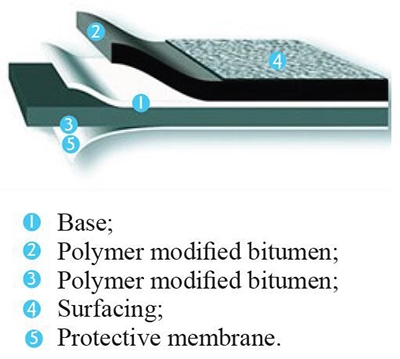

- Roof covered with bitumen weld coating;

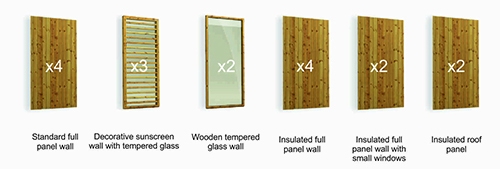

- 4 Standard full panel walls;
- 3 Decorative sunscreen walls with tempered glass;
- 2 Wooden tempered glass walls;
- 4 Insulated full panel walls;
- 2 Insulated full panel walls with small windows;
- 2 Insulated roof panels;
- Sauna benches;
- Three spaces inside: a sauna room, lounge room and a changing/shower room;
- Heat-resistant plates for the heater/stove;
- Aluminium sliding doors system Alutech;
- Inside glass doors;
- Changing room doors/partition.
The Sauna Cube frames are made from glue laminated spruce beams. Frame consists of bottom frame (140 x 100 mm), columns (140 x 140 mm), top frame (140 x 240 mm) and withstands 470 kg/m2 roof load.
The 1000 x 2200 mm walls are made of spruce wood from FSC-certified spruce forests of Northern Europe. The light, golden-white spruce are ideal for Cubes constructions designs.
Standard full panel wall. Wall frame 75 x 45 mm, panel covered with inside 96 x 12 mm and outside 145 x 18 mm horizontal spruce cladding boards.
Insulated full panel wall. Wall frame 75 x 45 mm, panel covered with inside 96 x 12 mm and outside 145 x 18 mm horizontal spruce cladding boards.
Insulated full panel wall with small windows. Wall frame 75 x 45 mm, panel covered with inside 96 x 12 mm and outside 145 x 18 mm horizontal spruce cladding boards. Size of windows: 180x1200 mm and 200x200 mm.
Decorative sunscreen wall. Wall frame 75 x 45 mm, horizontal sunscreen wall consists of 18 x 95 mm boards.
Wooden tempered glass wall. Wall frame 75 x 45 mm with full tempered glass window.
Sauna cube 4m x 3m is delivered to the customer not assembled, but with detailed assembly instructions and drawings, and packed on a pallet (KIT).
Aluminium sliding doors system Alutech. Sliding parts are framed with aluminum frames, manufactured from ‘’cold’’ single-chamber of aluminium profile with non-insulating gaskets. Sliding of the aluminum frame is made so that the entire structure is stable. Frames wheels designed for attachment to the motion and has aluminum profiles for vertical and horizontal adjustment, provides a particularly easy movement of moving parts.
Sealing brush prevents dust from entering the structure and compensates for vibration in the wind. All moving parts are very easy to remove and put it back, so there is no problem with cleaning glass from the outside.
In the closed position system has automatically locked and unlocked positions.
Handles and locks built into the aluminum profile, so during the opening , the glass always remains clean.
Characteristics of system:
- System profile: wide of 30 mm frame;
- Door profile depth of the frame and the sash: 45 mm;
- Glass thickness: 6 mm;
- This is single-chamber aliuminium system.

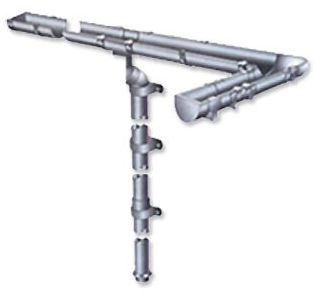

THE RAINWATER PIPES
The rainwater pipe package includes 4 m straight gutter and all parts needed for installation.
Down pipe package includes 2.5 m down pipe and all parts needed for installation.
No need for exact measurements and calculations and easy to transport and install, as all components needed are packaged compactly in a single package, ensuring safe delivery and easy installation.
Sauna cube 3x4 is delivered to the customer not assembled, but with detailed assembly instructions and drawings, and packed on a pallet (KIT). Size of the cargo (L x W x H), not assembled products on pallet ready for transportation: 4.4 x 1.2 x 2.6 m.
