23x10 Assassin Log Cabin with Gazebo (45mm)

For more unique features, take a look at our specifications tab.

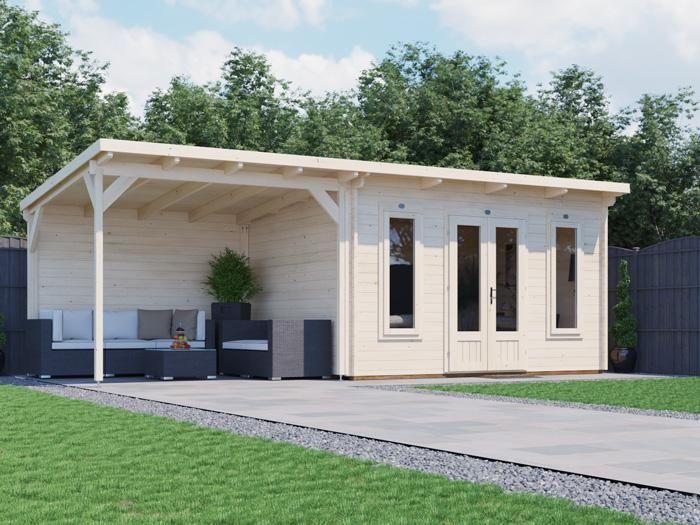

The 7m x 3m (W23' x D10' approx) (45mm thick) Assassin Log Cabin with attached Gazebo.

The Assassin Log Cabin with Gazebo. This Dunster House exclusive is a stunning and spacious garden building that will add both style and functionality to your outdoor space. With its impressive dimensions of W7m x D3m, this log cabin gazebo offers full diversity, so you can truly make it your own. From a home office or gym to an entertainment area, it is perfect for any occasion.

Customise your DunsterHouse Log Cabin Gazebo combo by adding extra doors, windows, insulation and a choice of roofing options below.


Technical specs (Approx Dimensions)

Internal Eaves Height (C): 2.07m (6' 9"), External Depth (B): 2.99m (9' 9"), External Width (A): 6.92m (22' 8"), Ridge Height (D): 2.46m (8' 0")

Please Note: All sizes quoted are nominal

Overall External Dimensions: 6.01m x 3.35m (19' 8" x 10' 11")

External Width: 6.92m (22' 8")

External Depth: 2.99m (9' 9")

Internal Width: 3.72m (12' 2")

Internal Depth: 2.77m (9' 1")

Internal Area (m2): 10.30m2

Ridge Height: 2.45m (8' 0")

Roof Overhang: 0.38m (1' 2")

Internal Eaves Height Front (to under the roof boards): 2.32m (7' 7")

Internal Eaves Height Front (to under the roof purlins): 2.18m (7' 1")

Internal Eaves Height Back (to under the roof boards): 2.07m (6' 9")

Internal Eaves Height Back (to under the roof purlins): 1.93m (6' 3")

Roof Style: Pent

Roof & Floor Thickness: 19mm Tongue & Groove Roof

Covering Options: None, Felt or uPVC Rubber

Wall U-Value (W/m2k): 1.93

Wall Thicknesses Available: 45mm Walls: 100% Slow-Grown Spruce

Building Style: Interlocking Tongue & Groove Logs

Floor Bearers: Pressure Treated

Door Style: Part Glazed, Double Door

Locking System: Industry Leading 4 Point Lock - 2 Cams, Latch & Hook Bolt

External Width (Gazebo): 3.00m (9' 10")

External Depth (Gazebo): 2.89m (9' 5")

Internal Width (Gazebo): 2.77m (9' 1")

Internal Depth (Gazebo): 2.74m (8' 11")

Internal Area (Gazebo): 7.59m2

Roof Purlins: 140 x 45mm

Windows: 2

Window Locking System: Multi Point with Mushroom Headed Espagnolettes

Window Opening Size: 0.43m x 1.37m (1' 4" x 4' 5")

Glazing Material: Double glazed

Ventilation: Plastic Vents Included

Adjustable Storm Braces: Included

Assembly fixings & instructions: All included

Assembly Time: 1 - 2 Days This time is an approximation, based on two people building the basic product with no added extras. Assembly time may vary with additional items such as roof shingles, or external circumstances like the weather.

Crafted from high-quality, slow grown spruce timber, the Assassin Log Cabin gazebo is an attractive and sturdy design that will withstand all types of weather Ireland may throw at it. Not to mention the option to add excellent insulation, keeping you warm and comfortable even on colder days.
Don't forget the pressure treated floor bearers that come with a 10-year guarantee. Or, the thick 19mm roof and floorboards which are included as standard. Not an optional extra like some of our competitors. Did we mention the double glazing?
Assembly of the Assassin Log Cabin is straightforward and can be completed with just basic DIY skills. The kit comes with all the necessary fittings and instructions, and Shed Factory's team of experts are always on hand to offer support and advice. We even offer an installation service (optional extra) if you want it expertly built.
Overall, the Assassin Log Cabin from Dunster House is a versatile, practical, and stylish garden building that will add value to your property and enhance your outdoor living experience for years to come.


Write Your Own Review
You're reviewing:23x10 Assassin Log Cabin with Gazebo (45mm)
Your Rating
Customise Your Order
Upgrade with the following options to the standard specification above.
  • Roof Insulation + £750.00
  • Floor Insulation + £180.00
  • Felt Lap Adhesive + £10.00
  • Eco Guttering Kit + £157.00
  • Premium Rapid Grid™ + £370.00
  • Fattass Home Bar + £620.00
  • Log Bar + £340.00
  • Cabin Corner Bar + £450.00
