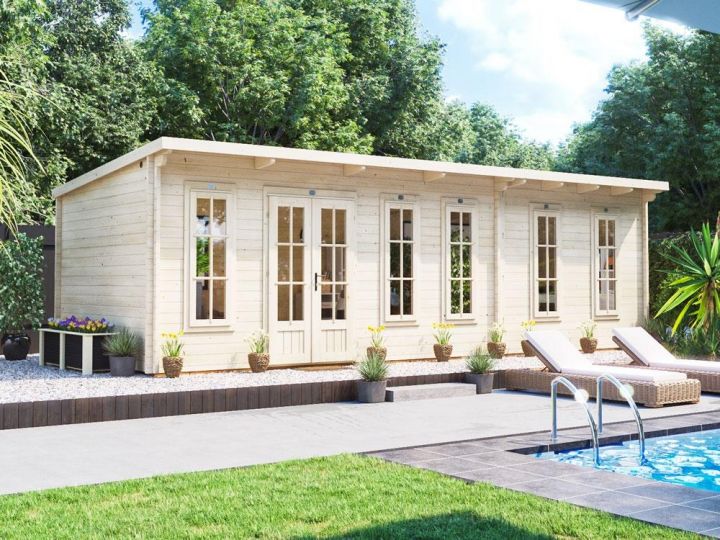

27x10 Terminator Grande Log Cabin (45mm)

Technical specs (Approx Dimensions)

Internal Eaves Height (C): 2.32m (7' 7"), External Depth (B): 2.99m (9' 9"), External Width (A): 7.98m (26' 2"), Ridge Height (D): 2.45m (8' 0")

Please Note: All sizes quoted are nominal

Overall External Dimensions: 8.51m x 3.35m (27' 11" x 10' 11")

External Width: 7.98m (26' 2")

External Depth: 2.99m (9' 9")

Internal Width: 7.76m (25' 5")

Internal Depth: 2.77m (9' 1")

Internal Area (m2): 21.50m²

Ridge Height: 2.45m (8' 0")

Internal Eaves Height Front (to under the roof boards): 2.32m (7' 7")

Internal Eaves Height Front (to under the roof purlins): 2.18m (7' 1")

Internal Eaves Height Back (to under the roof boards): 2.07m (6' 9")

Internal Eaves Height Back (to under the roof purlins): 1.93m (6' 3")

Roof Style: Pent

Roof Thickness: 19mm Tongue & Groove Roof

Covering Options: None, Felt or Shingles

Wall U-Value (W/m2k): 1.93

Wall Thicknesses Available: 45mm Walls: 100% Slow-Grown Spruce

Building Style: Interlocking Tongue & Groove Logs

Floor Bearers: Pressure Treated

Door Style: Part Glazed, Double Door

Locking System: Industry Leading 4 Point Lock - 2 Cams, Latch & Hook Bolt

Door Height (including frame): 2.02m (6' 7")

Door Height (Walkthrough Height): 1.82m (5' 11")

Door Width (Walkthrough Width): Wide Opening 1.11m (3' 7")

Window Locking System: Multi Point with Mushroom Headed Espagnolettes

Window Opening Size: 0.44m x 1.41m (1' 5" x 4' 7")

Glazing Material: 24mm Double Glazing Included As Standard

Georgian Bars: Included - optional to fit

Ventilation: 2 Plastic Vents Included

Adjustable Storm Braces: Included

Assembly fixings & instructions: All included

Assembly Time: 1 - 2 Days This time is an approximation, based on two people building the basic product with no added extras. Assembly time may vary with additional items such as roof shingles, or external circumstances like the weather.
