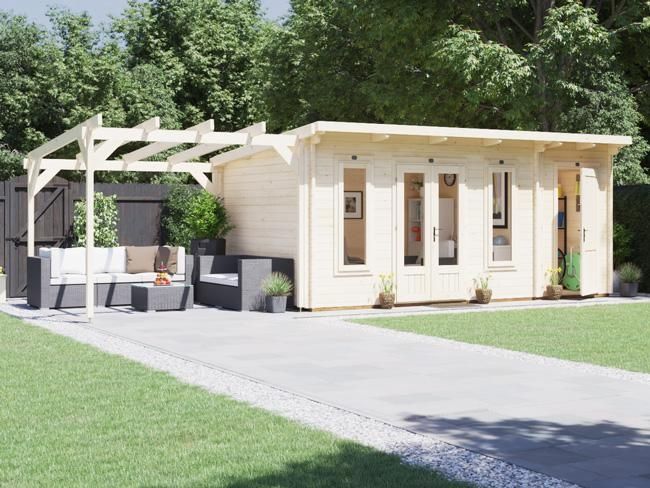

28x12 Vampire Log Cabin with Pergola (45mm)

Technical specs (Approx Dimensions)

Internal Eaves Height (C): 2.07m (6' 9"), External Depth (B): 2.99m (9' 9"), External Width (A): 8.40m (27' 6"), Ridge Height (D): 2.46m (8' 0")

Please Note: All sizes quoted are nominal

Overall External Dimensions: 8.49m x 3.35m (27' 10" x 10' 11")

External Width: 8.40m (27' 6")

External Depth: 2.99m (9' 9")

Internal Width: 3.77m (12' 4")

Internal Depth: 3.77m (12' 4")

Internal Area (m2): 10.44

Main Room Internal Area (m2): 10.44

Store Room Internal Width: 1.45m (4' 9")

Store Room Internal Depth: 2.77m (9' 1")

Store Room Internal Area (m2): 4.02

External Width (Pergola): 2.94m (9' 7")

External Depth (Pergola): 2.89m (9' 5")

Ridge Height: 2.45m (8' 0")

Roof Overhang: 0.38m (1' 2")

Internal Eaves Height Front (to under the roof boards): 2.32m (7' 7")

Internal Eaves Height Front (to under the roof purlins): 2.18m (7' 1")

Internal Eaves Height Back (to under the roof boards): 2.07m (6' 9")

Internal Eaves Height Back (to under the roof purlins): 1.93m (6' 3")

Roof Style: Pent

Roof & Floor Thickness: 19mm Tongue & Groove Roof

Covering Options: None, Felt or uPVC Rubber

Wall U-Value (W/m2k): 1.93

Wall Thicknesses Available: 45mm Walls: 100% Slow-Grown Spruce

Building Style: Interlocking Tongue & Groove Logs

Floor Bearers: Pressure Treated

Door Style: Part Glazed, Double Door

Main Door Height (Walkthrough Height): 1.82m (5' 11")

Main Door Width (Walkthrough Width): 1.11m (3' 7")

Store Room Door Height (Walkthrough Height): 1.82m (5' 11")

Store Room Width (Walkthrough Width): 0.74m (2' 5")

Locking System: Industry Leading 4 Point Lock - 2 Cams, Latch & Hook Bolt

Windows: 2

Window Locking System: Multi Point with Mushroom Headed Espagnolettes

Window Opening Size: 0.43m x 1.37m (1' 4" x 4' 5")

Glazing Material: Double glazed

Ventilation: Plastic Vents Included

Adjustable Storm Braces: Included

Assembly fixings & instructions: All included

Assembly Time: 1 - 2 Days This time is an approximation, based on two people building the basic product with no added extras. Assembly time may vary with additional items such as roof shingles, or external circumstances like the weather.
